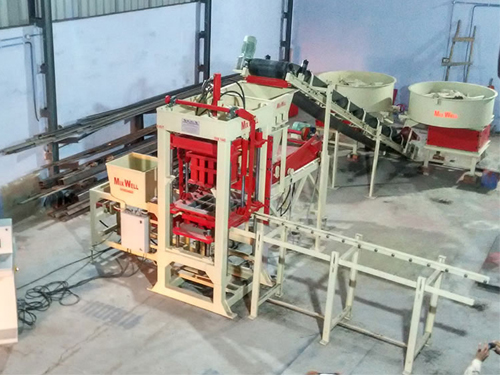

Fully Automatic Fly Ash Brick Making Machine

WE manufacturing, trading and supplying Fully Automatic BRICK & Block Making Machine. This block making machine is used in various construction industries for block making. Our block making machine is developed from the finest quality material & contemporary techniques keeping in pace with industry norms. The offered block making machine is accessible in assorted specifications to meet the needs of the customers.

Features

  • Less maintenance
  • Optimum performance
  • Low power consumption

  • Specification:

  • Main body from HEAVY PLATES & PIPES guide rod will be chromium plated
  • 3 Stroke in a minute
  • 6 Pavers in a Stroke
  • 8 bricks in a stroke

  • Pan Mixer Details::

  • Pan Ø: 1500 mm
  • Side wall height: 500 MM height
  • Bottom plate: 10 mm M.S.
  • Side wall plate: 4 mm M.S
  • Motor: 7.5 h.p ,1440 rpm 3 phase

  • Power (Load):

  • Hydraulic: 10 HP
  • Taper conveyor: 2 HP
  • Down conveyor: 1 HP
  • Vibrator: 2 H.P
  • Pan Mixer: 7.5 HP X 2 NOS
  • Total Power: 30 HP

  • Hydraulic Cylinder:

  • Ramming: 1 no
  • Box: 2 nos
  • Feeder: 1 no
  • Wooden pallet conveyor: 1 no
  • Total: 5 nos

  • Conveyor Belt:

  • Conveyor belt thickness: 8 mm & length 22 foot
  • P.L.C Control:

  • Well designed plc control system
  • Auto pallet function: for hydraulic
  • Tank capacity for hydraulic oil: 300 litres
  • Single layer feeder box Electrical Plc control panel
  • Bricks removal: through 10 ft conveyor
  • Total weight: 3500 kg
  • Operating pressure: 220 bar-100 ton
  • Mixing rough material: from pan mixer to conveyor through conveyor to storage box, then storage box to feeder and to auto ram and box
