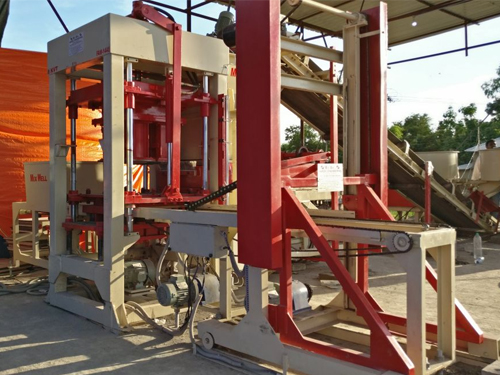

Fully Automatic Paver Block Making Machine

Our undying urge to succeed and create new benchmarks in the domain of manufacturing, trading and supplying Fully Automatic Paver Block Making Machine. This block making machine is used in various construction industries for block making. Our block making machine is developed from the finest quality material & contemporary techniques keeping in pace with industry norms. The offered block making machine is accessible in assorted specifications to meet the needs of the customers.

Features

  • Less maintenance
  • Optimum performance
  • Low power consumption


  • Specification:

  • Per shift production 7,000 pavers
  • Main body from HEAVY PLATES & PIPES guide rod will be chromium plated
  • 3 Stroke in a minute
  • 4 Pavers in a Storke
  • 6 Pavers in a Storke

  • Pan Mixer Details:

  • Pan : 1500 mm
  • Side wall height: 400 MM height
  • Bottom plate: 10 mm M.S.
  • Side wall plate: 4 mm M.S
  • Motor: 5 h.p ,1440 rpm 3 phase

  • Power (Load):

  • Hydraulic: 10 HP
  • Taper conveyor: 2 HP
  • Down Conveyor: 1 HP
  • Vibrator: 2 H.P
  • Pan Mixer: 5 HP
  • Total Power: 20 HP

  • Hydraulic Cylinder:

  • Ramming: 1 no
  • Box: 2 nos
  • Feeder: 1 no
  • Wooden Pallet Conveyor: 1 no
  • Total: 1 nos

  • Conveyor Belt:

  • Conveyor belt thickness: 12 mm & length 20 foot

  • P.L.C Control:

  • Well designed plc control system
  • Auto pallet function: for hydraulic
  • Tank capacity for hydraulic oil: 300 ltrs
  • Single Layer Feeder box Electrical Plc control panel
  • Bricks removal: through 15 ft conveyor
  • Total weight: 3500 kgs
  • Operating pressure: 220 bar-70 ton
  • Mixing rough material: from pan mixer to conveyor through conveyor to storage box, then storage box to feeder and to auto ram and box
