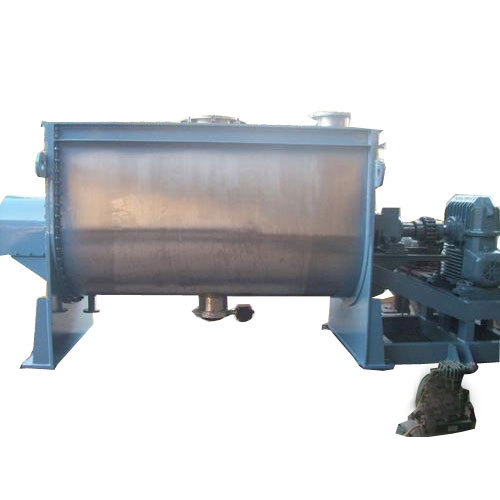

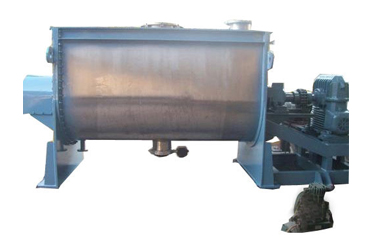

Ribbon Blender
Owing to a long-term destination for our business, we are engaged in offering a wide gamut of Ribbon Blender. The offered blender is manufactured by our trained professionals using optimum grade material and sophisticated techniques in adherence to set industry standard. Further, it is stringently checked on several quality parameters before being dealt to our clients assuring its flawlessness at users end. Clients can avail this blender from us at market leading price.
Features
Specification:
| Particulars | Ribbon Blender |
| Vessel | Horizontal Cylindrical./U trough Stationery |
| Vessel support | Saddles |
| Charging | On cylindrical body, on top central/ side |
| Discharge | On cylindrical Body, on top central/ side |
| Rotary Part for Mixing | Central Horizontal Ribbon |
| Drive & Position | Motor coupled to worm / heli-worm reduction, then spur girth gear set / chain sprocket set |
| RPM range | 40-60 |
| Drive lifting | Not needed |
| Suitable for mixing | Free flowing solid-solid |
| Liquid Spraying | Possible by providing a spray bar inserted through side |
| Homogenizer | Not possible |
| Chopper/ Lump breaker | Not possible |
| Jacketing | Possible |
| Vacuum | Possible |
| Vac. Sealing | St.box/M.seal |
| Air filter | Air vent on top cover / cyl body |
| Manhole | On top cover or body |
| Mixing time | 25-30 minutes |
| Drying time For 20% Vapour content | Not used for drying, but for heating/cooling |
| Baffling | Flats between flights |
| Mixing method | Conveying through ribbon flights horizontally |
| Precision of Mixing | Two dimensional, reasonable |
| Suitable for Product | Dry powder, heating of cake |
| HP rating | 60-65 % efficiency |
| Space occupancy | Occupies a lot of horizontal space |
| Safety factor | Rotor is totally enclosed, no lifting of drive, hence safe. |
